DEKsafe Side Protection

Safe against falls. Quick to install. Universally applicable.

Downloads Contact Used Material

Product Features

> Product details

Height 1,15m
Length 1,75m / 2,20m / 2,70m
High-quality powder coating

> Extremely versatile

On concrete surfaces

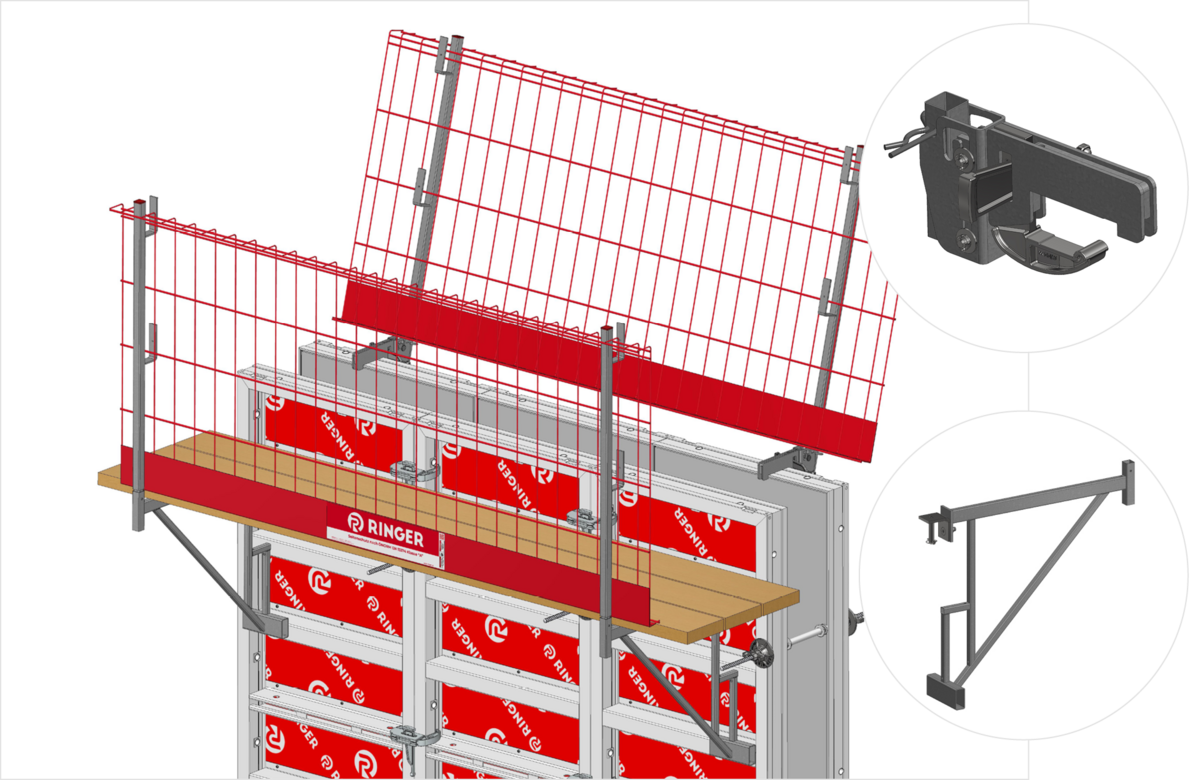

On formwork
At the edge of the ceiling

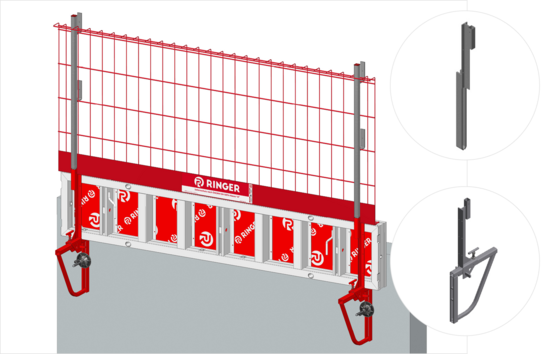

With ceiling edge formwork
On DEKplus ceiling table

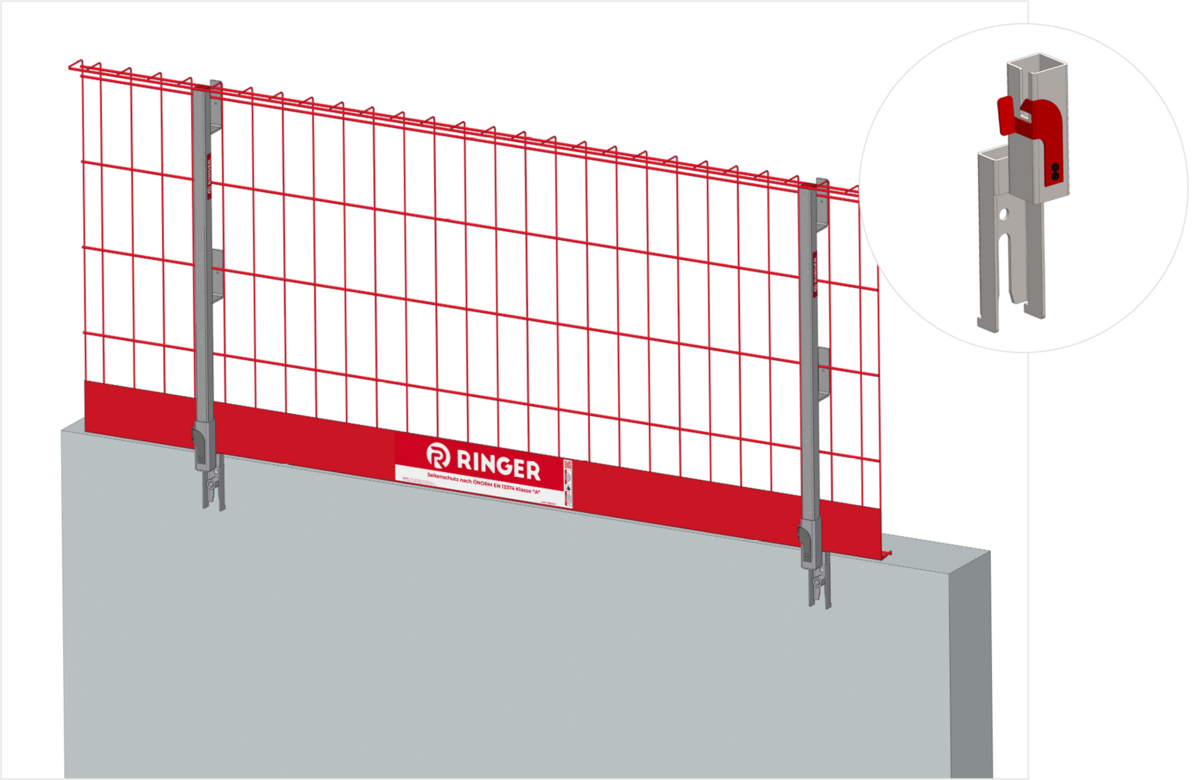

On parapet

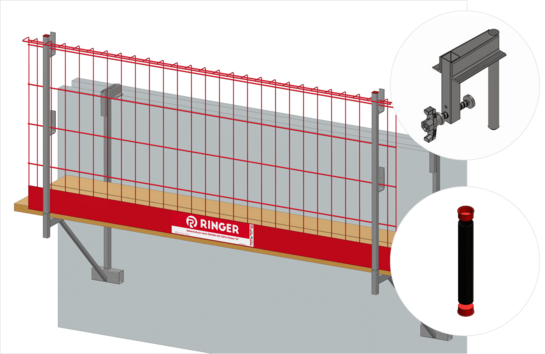

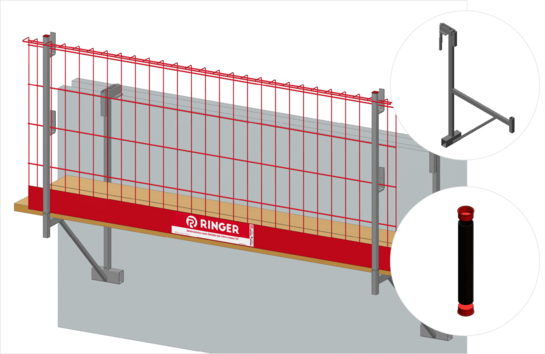

On precast walls

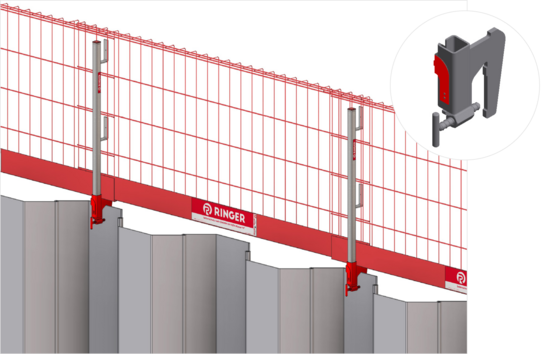

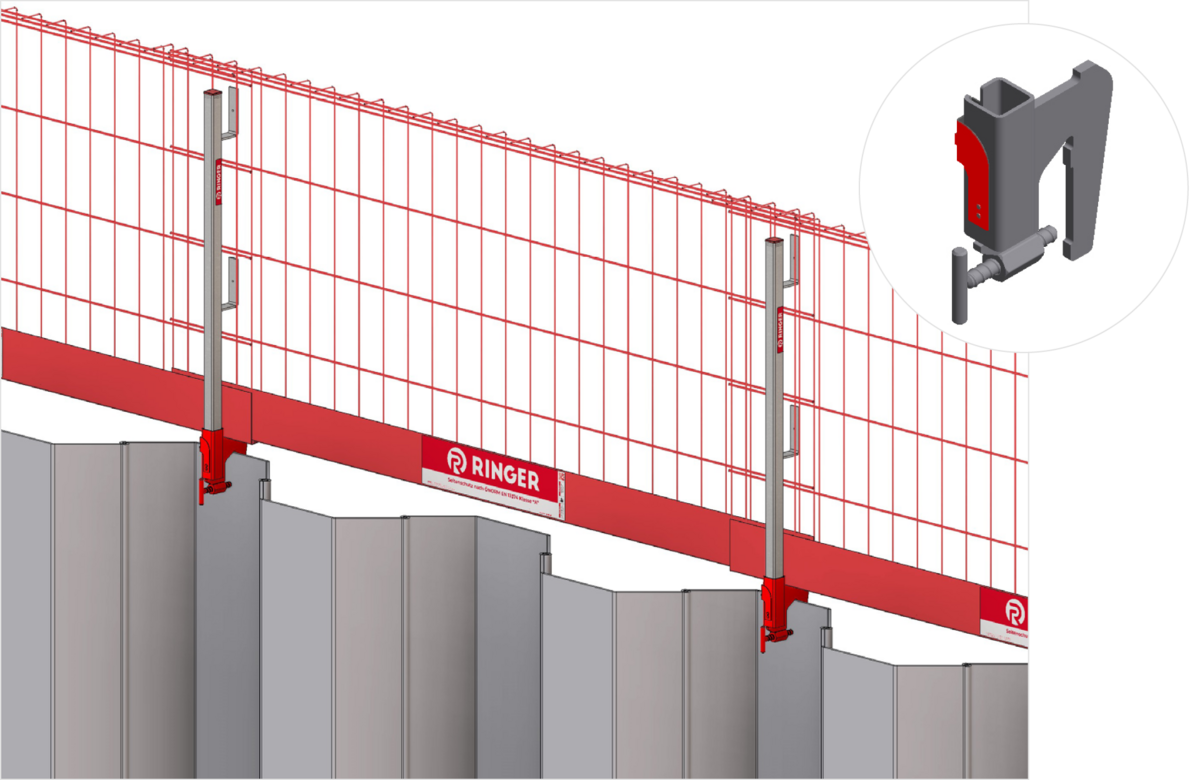

On sheet piling

> Quick and easy assembly

Sturdy lightweight construction
System solution with few components
Easy handling on the construction site
Quick assembly without special tools

> Proven safety

Standard-compliant fall protection
Side protection grids & fastenings in accordance with ÖNORM EN13374 Class “A”
In accordance with the Construction Worker Protection Ordinance & ÖNORM B4007
Detailed assembly instructions

> Efficient transport & storage

Stackable
Up to 30 barriers per stacking rack
Handling with forklift or crane

Universal side protection for maximum construction site safety

DEKsafe side protection from RINGER is the reliable solution for standard-compliant fall protection in building construction. It is suitable for slab formwork, wall formwork, slab edges, and precast walls, ensuring consistent construction site safety.

The well-designed construction with few components enables quick and easy installation. Numerous installation options ensure high flexibility in a wide variety of installation situations, such as on concrete surfaces, on the parapet, or on the ceiling edge, and support an economical construction process.

The system meets the requirements of ÖNORM EN 13374 Class A and thus offers tested safety as fall protection in building construction. The integrated foot guard additionally increases protection when working on facades and ceiling edges.

Installation options

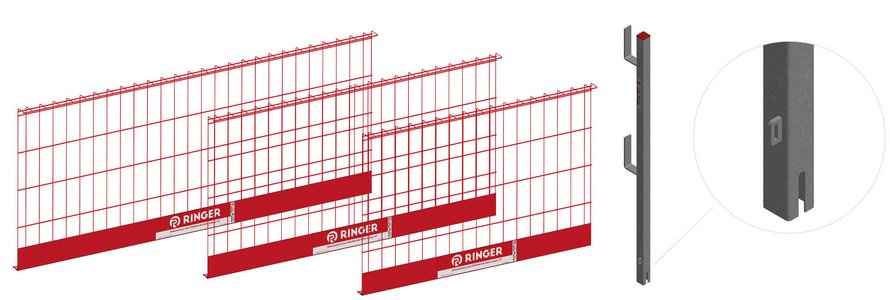

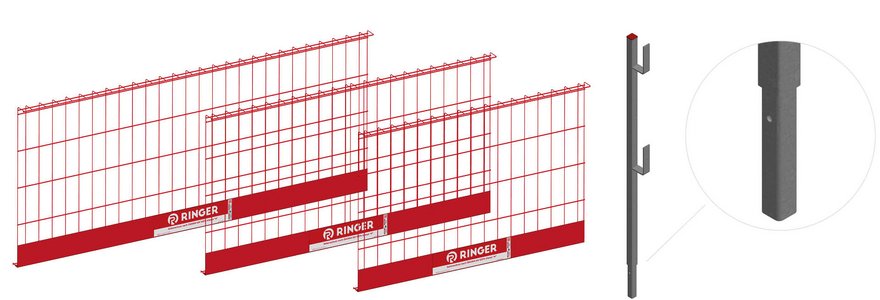

with guardrail post for side protection grid

The guardrail post for side protection grids is compatible with numerous installation components. It is easy to install and, once locked into place, is automatically secured against accidental removal by a spring. The DEKsafe grid is simply hooked onto the brackets of the guardrail post.

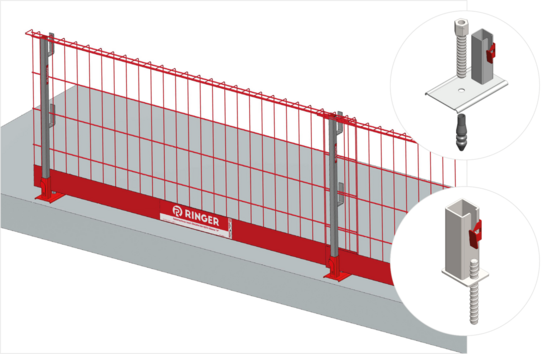

On concrete surfaces from above

Installation on concrete surfaces is carried out from above using a guardrail post with anchor sleeve and anchor screw DW 15. Alternatively, the screw shoe can also be used.

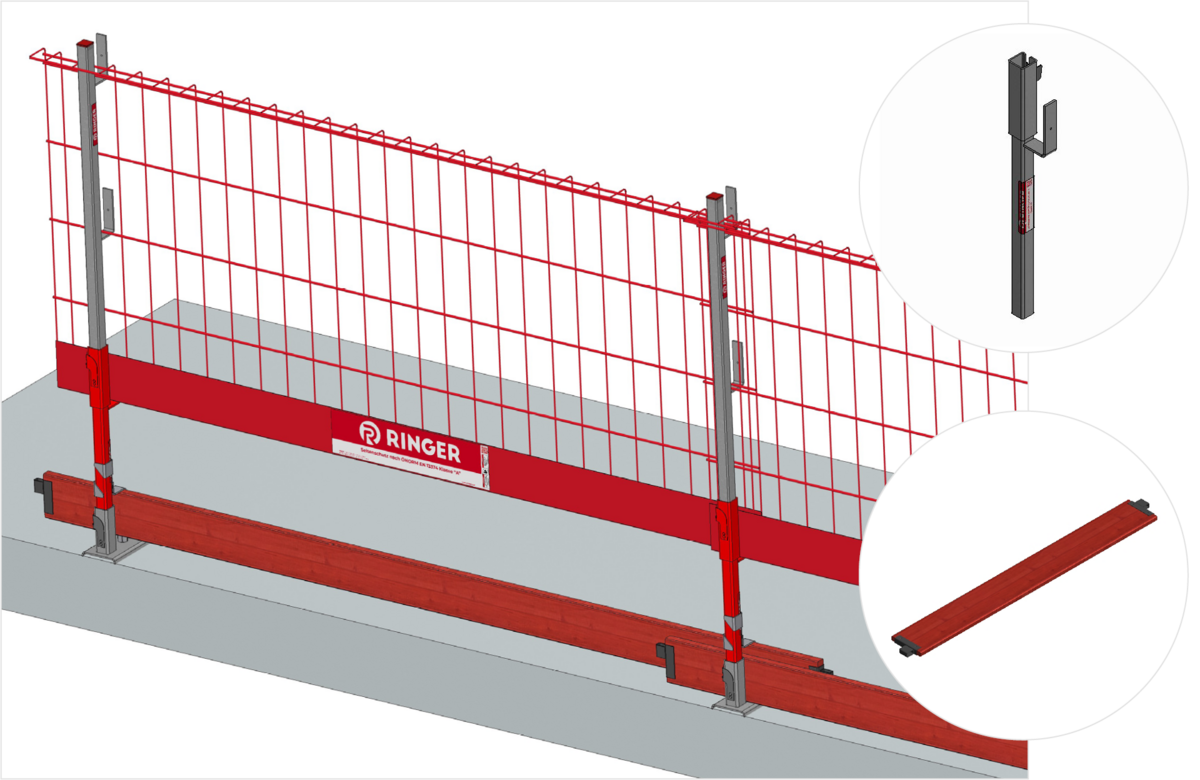

Railing extension to 150 cm

With the 60 cm guardrail extension and foot guard, the DEKsafe side protection can be extended to a total height of 150 cm.

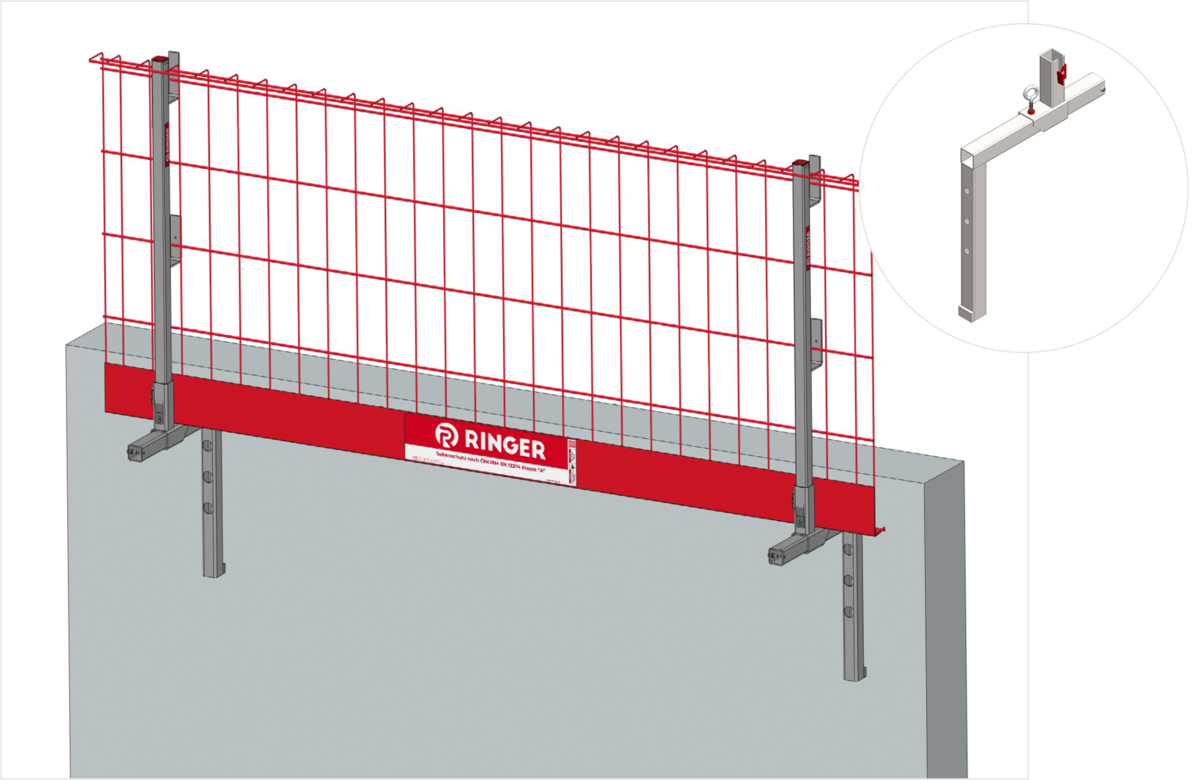

At the front edge of the ceiling

The DEKsafe side protection is mounted at the front edge of the ceiling using the mounting bracket for railing posts. The distance to the ceiling edge is adjustable.

At the front edge of the ceiling

The DEKsafe side protection is mounted at the front edge of the ceiling using the front shoe.

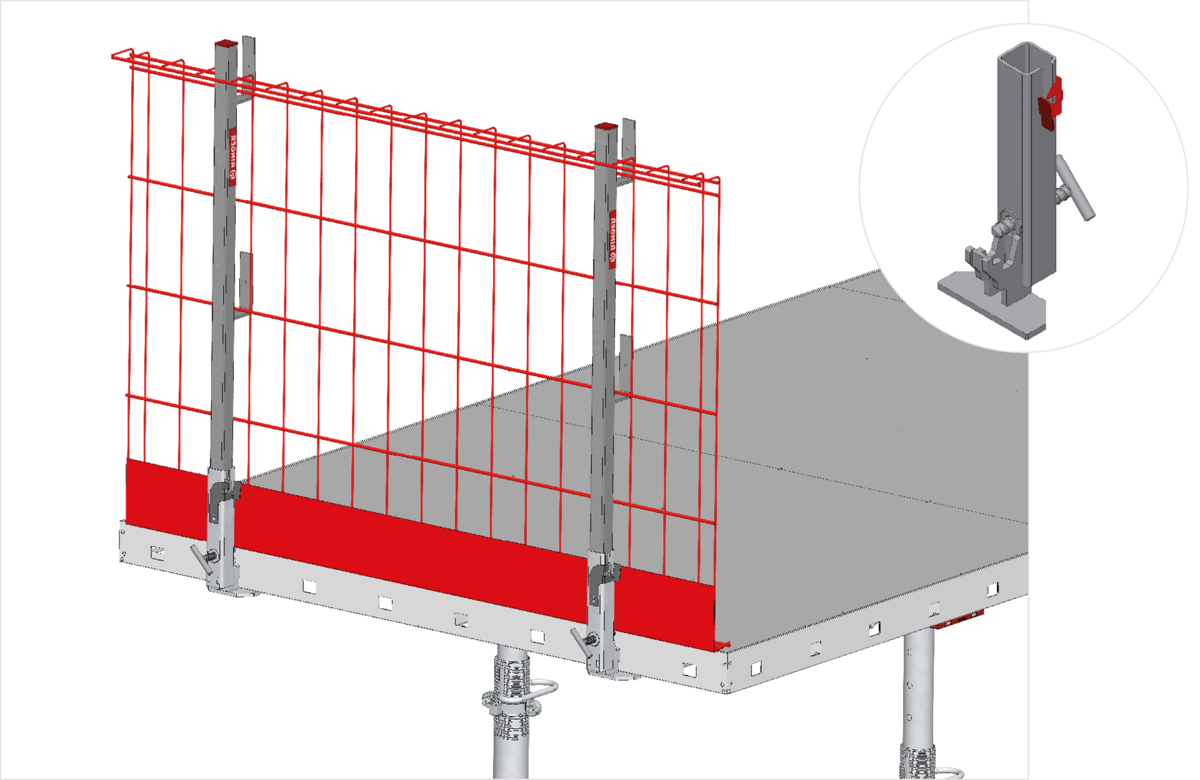

On the DEKplus slab table using a guardrail post

The DEKsafe side protection can be attached directly to the slab table using the DEKplus guardrail shoe.

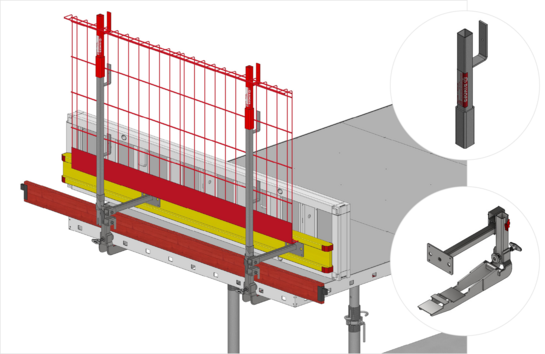

Guardrail extension DEKplus ceiling table to 150 cm

With the DEKplus guardrail post with formwork, the 35 cm guardrail extension, and foot guard, the side protection on the DEKplus ceiling table is extended to a total height of 150 cm.
