Guardrail with UNI-Clamp

All fall protections in one system.

Many advantages - a multi-talent.

Downloads Contact

Product Features

> Confirming to standards

> Versatile

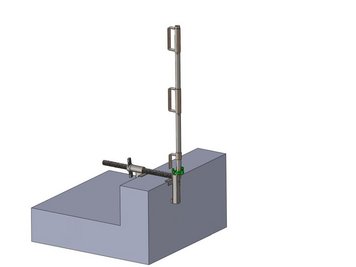

Mounting on slabs, attics, precast walls, formwork and much more
Adjustment range 5 - 45 cm

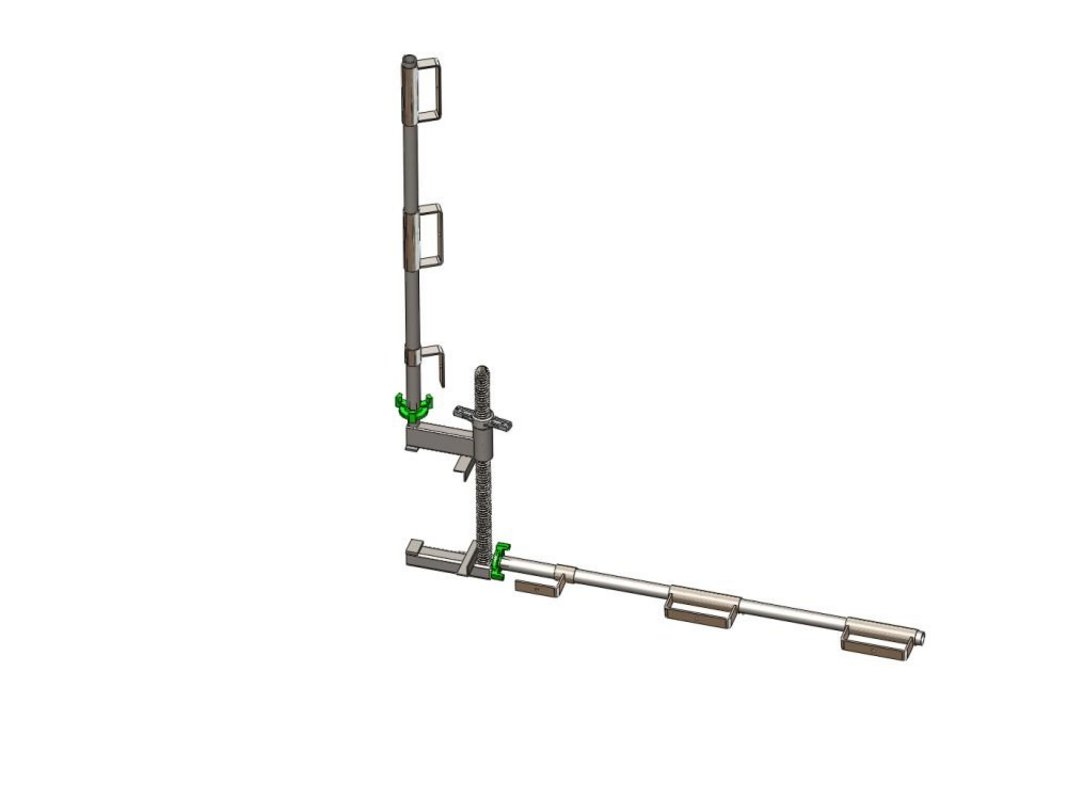

Horizontal or vertical guard rail attachment
Toe board holder rotates 360 °
Toe bar holder adjustable in height

> Weather resistant

Long service life thanks to hot-dip galvanizing

> Maximum safety

Certificated according to ÖNORM EN 13374 Class "A"
Fast and simple securing
Fixed connection by three wing nuts

> Technical Details

Mounting distance 1,50 m, Board thickness min. 15 x 2,4 cm
Mounting distance 2,00 m, Board thickness min. 15 x 3,0 cm

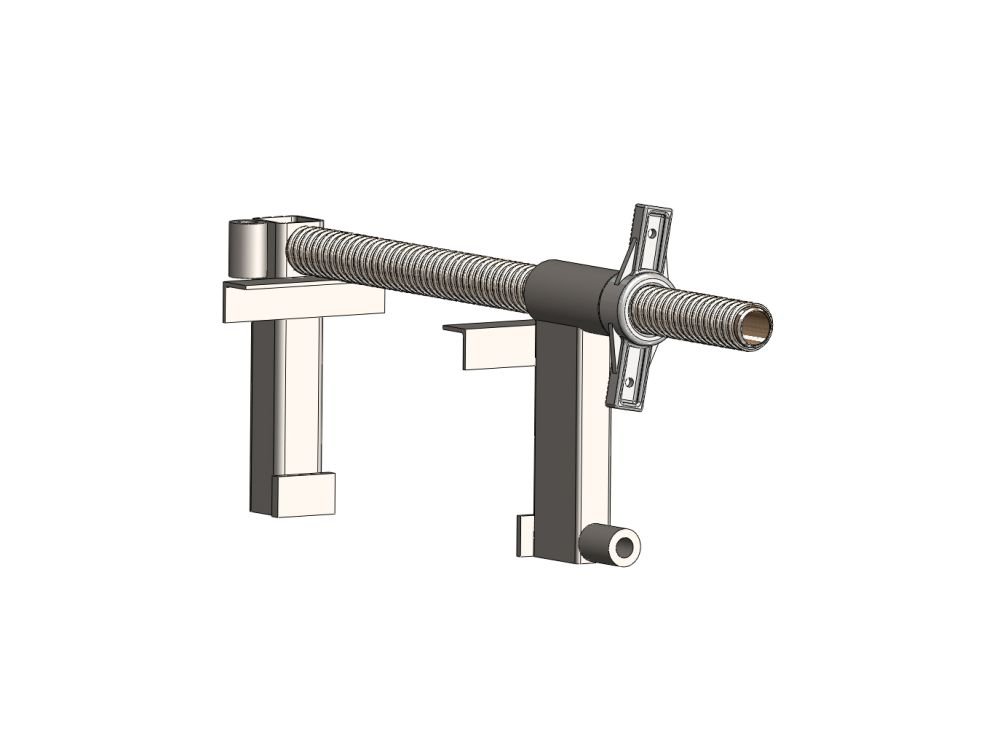

The versatile clamp

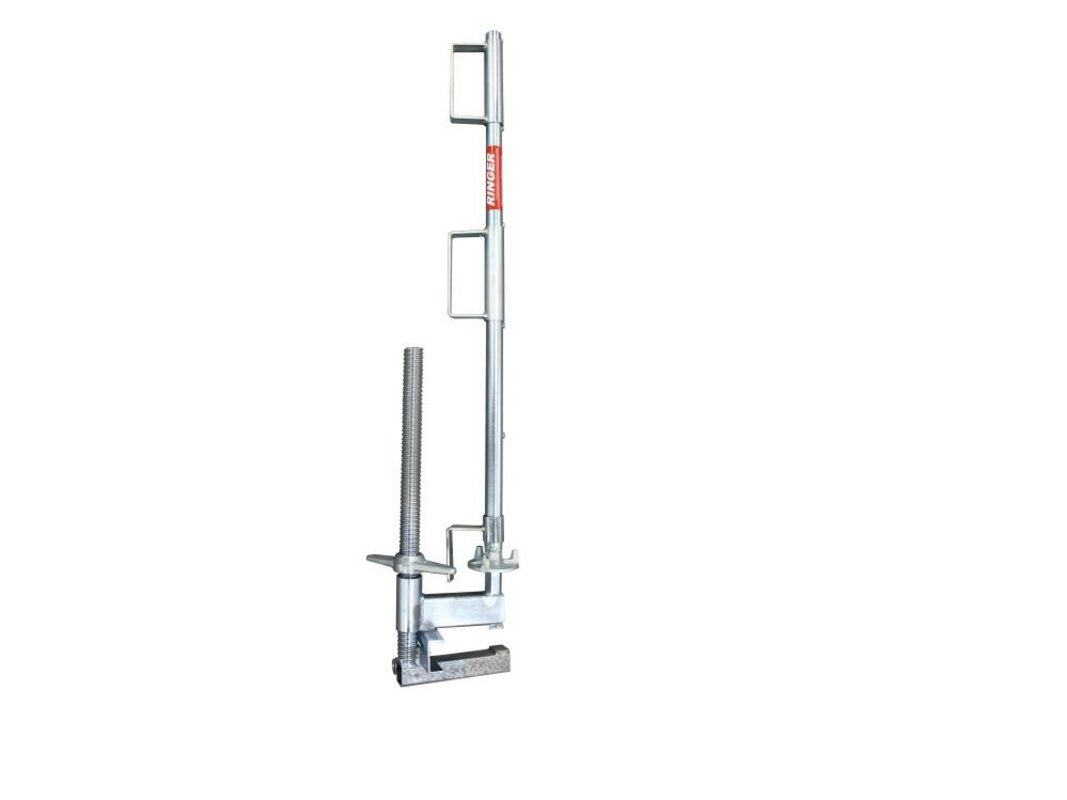

RINGER Guard Rail with UNI-Clamp can be used universally for any type of side protection and has been tested according to ÖNORM EN 13374 Class "A".

The UNI-Clamp can be used in many ways thanks to the horizontal and vertical guardrail assembly. The 360 ° adjustable toe board holder and the height- adjustable toe bar holder, allow even more flexibility.

The adjustment ranges from 5 - 45 cm and the clamp can therefore be mounted on ceilings or parapets with a thickness of up to 45 cm. This guardrail ensures fast and simple securing and is robust and durable due to galvanization.
