> Super-fast
- Fastest floorplan formed and stripped out at rate of 0.14 h/m²
- Averaging a mere 0.19 h/m2
(Guide work times in building construction (ARH values) as quoted in the Handbook for Construction Work Organisation (Handbuch Arbeitsorganisation Bau), Formworking/system formwork, slabs 2023 (Schalarbeiten/Systemschalung Decken 2023, Zeittechnik-Verlag)
> High-performing
- Light-weight panels only 16 kg/m²
- Up to 30 cm thick slabs without additional support
- Thicker slabs possible with additional propping
> Versatile
- Panel size 1,35 x 1,35m (1,82m²), 1,35 x 0,90m (1,215m²), 1,35 x 0,60m (0,81m²), 1,35 x 0,45m (0,60m²)
- For any layout
> Time and cost saving
- Few individual parts and low weight

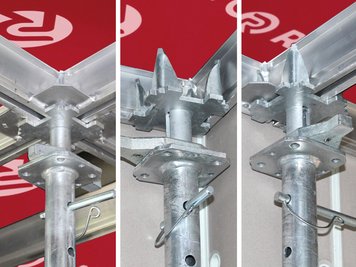

- One drop head for all purposes (edge-, joint and corner areas)
- Large scale forming due to 1,82m ² sized panels
- Use of standard floor props with 20 kN possible

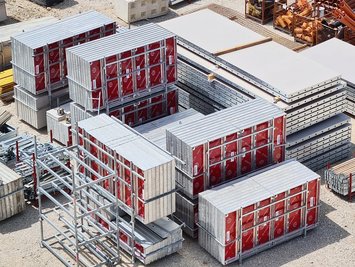

> Low transport volume
- Low overall height of 10cm, 36.4m² per stacking frame
- Up to 582m² formwork in stacking frame + accessories per truck-trailer
> Stable and ergonomic geometry
- Stable aluminium panels
- Easy cleaning thanks to closed edge profiles
> Safe assembly
- From floor level
- Simple hanging and lifting of panels

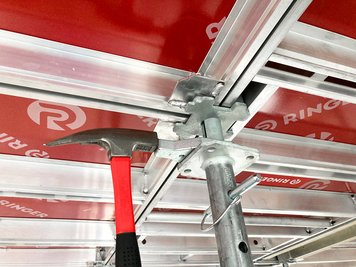

- Lowering head with rapid lowering for safe formwork removal
> Compatible with DEKplus slab table
> Compatible with AL2000 wall formwork panels
The extra-light aluminum modular slab formwork for fast, large-area formwork.
RINGER AluDEK is a strapless hand-set formwork in lightweight aluminum construction (16.0 kg/m²).
The formwork combines the advantages of panel slab formwork with the advantages of beam formwork. This means fast shuttering in the regular area and flexible shuttering in the fitting areas.
The system consists of just three main components: Floor prop, header and panel. The AluDEK head is suitable for edge, joint and corner areas, making it particularly easy and efficient to use.

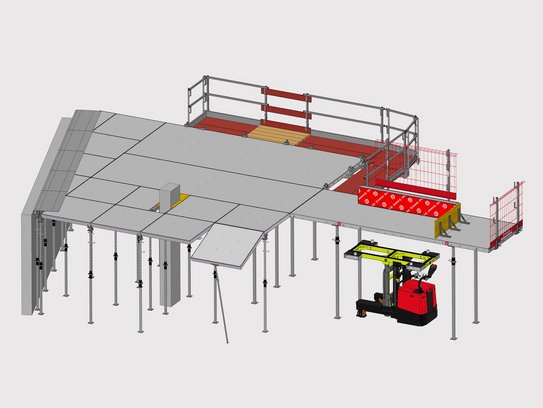

Perfectly coordinated: AluDEK & DEKplus
A slab formwork system without compromise.
AluDEK and DEKplus complement each other perfectly, the panels are 100% compatible.

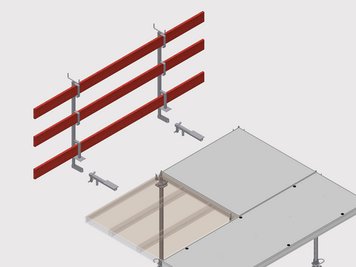

All safety components can be fitted and removed without tools. Both the extension and safety components are integrated into the system.

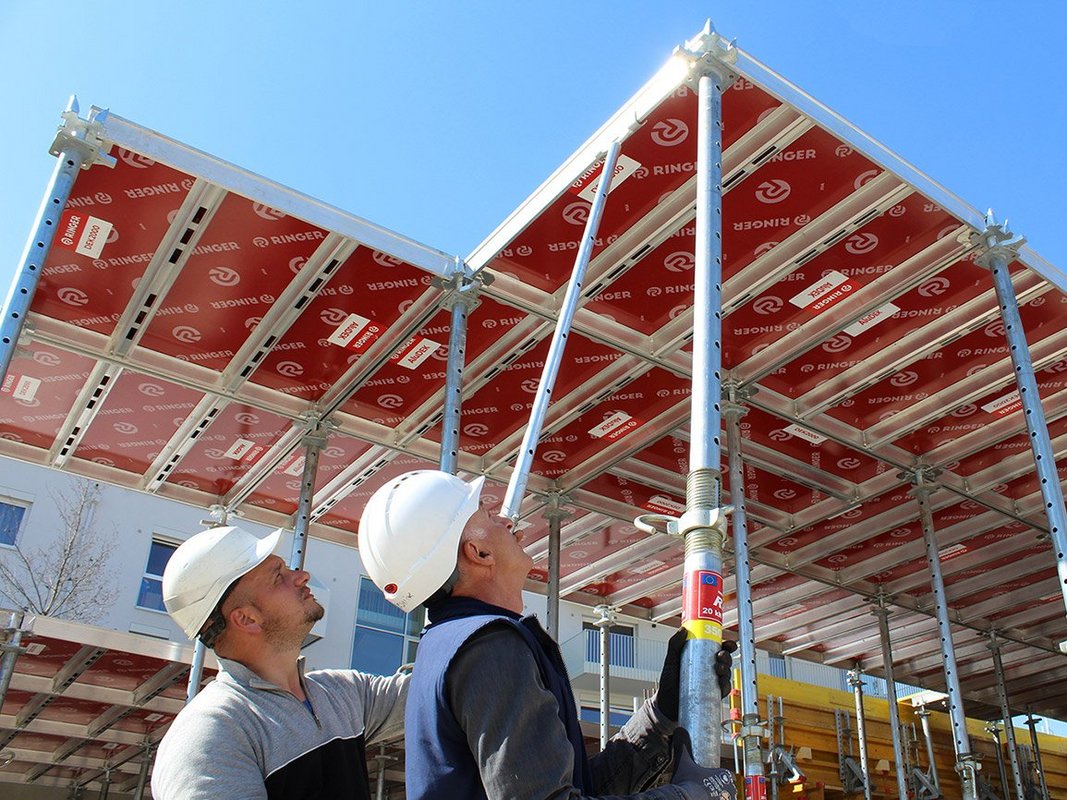

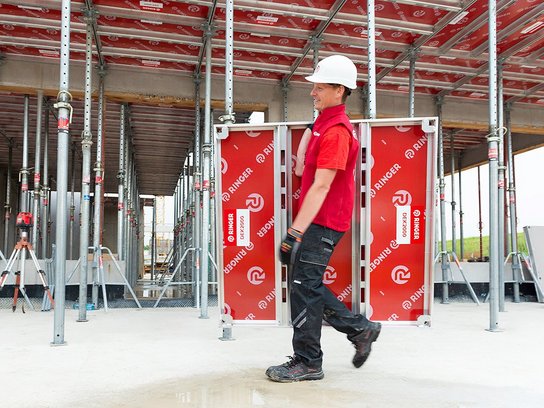

Only two people required for mounting
The lightweight aluminum profiles make the AluDEK elements particularly light. At just 16 kg/m², they can be carried by one person and installed from the ground by two people. This means that the system offers maximum safety, as there is no need to work from above. They can be installed in any direction.

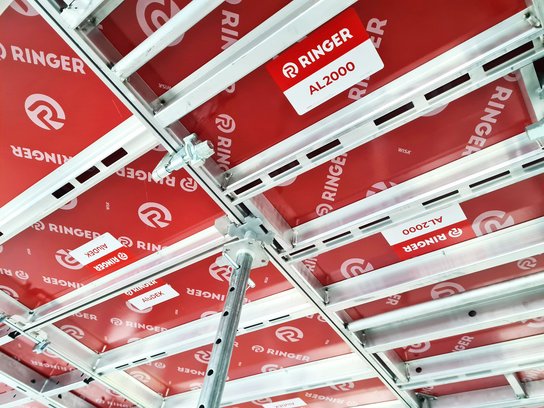

Wall formwork as slab formwork.
AluDEK can be combined with AL2000 panels as required. The profiles have the same cross-section geometry as AluDEK and can therefore be mixed and matched without an adapter.
AL2000 wall elements are used as slab formwork elements, especially for fitting areas and smaller surfaces.
A combination with the large AluDEK elements makes the system fast, flexible and economical.

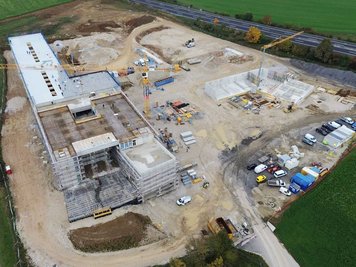

45,000m² company headquarters for ETZI Group
AluDEK is being used in combination with the brand new DEKplus slab table from RINGER for the realization of this ambitious construction project.
The Project

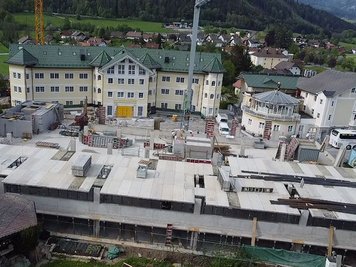

Wellnesshotel Dilly parking garage
The AluDEK slab formwork together with the AL2000 wall formwork ensures rapid construction progress in the extension to the Wellnesshotel Dilly in Windischgarsten
