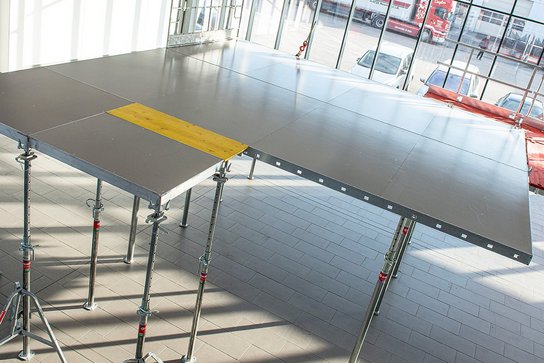

DEKplus Slab Formwork
The Concreting Table without compromises.
Slab forming in high speed at its best!
Product features
> High performing
- Table sizes 5,40 x 2,25m (12,15m²) / 5,40 x 1,80m (9,72m²)
- Up to 50 cm slab thickness, flatness is compliant with DIN 18202 Table 3 Group 7 requirements
- Maximum slab thickness according to the instructions for assembly and use is 70 cm; up to 110 cm possible with project-specific planning
> Space-saving
- Overall height is slim 12 cm
- Formwork with a surface area up to 480 m² transported on a single semi-trailer

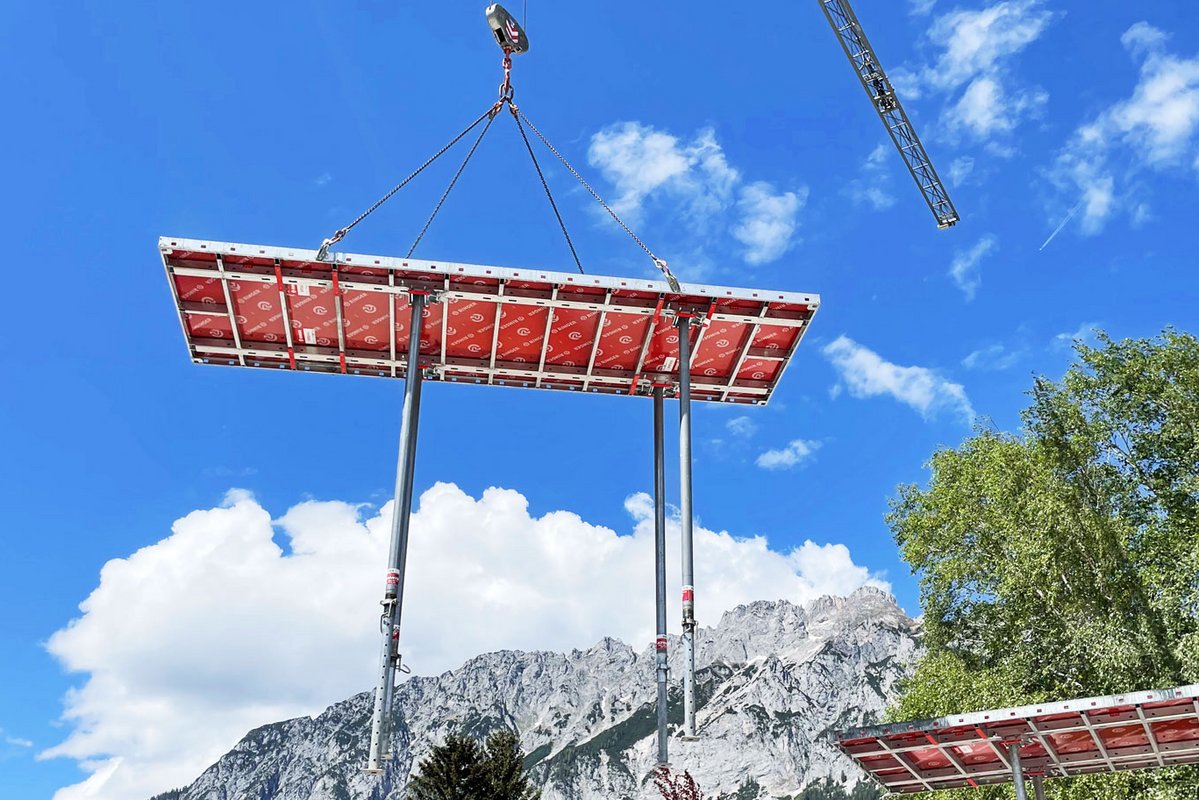

- Crane hooks are sized for up to 5 tables to be crane-lifted at once
> Economical
- > 33 % faster forming than with H20 concreting tables
- > 50 % lower refurbishment costs than with H20 concreting tables
- > 60 % lower transport costs than with H20 concreting tables
> Robust and durable
- Frame fully galvanised with all-round edge protection
- Plastic coated plywood, 15 mm thick
- Integral plastic plates protect the plywood when the tables are being stacked, also with prop heads installed
> Zero-compromises compatibility
- Compatible with AluDEK
- With appropriate adapters, AluDEK can also be installed directly
on the tables, no additional floor props needed - Simple infills with shuttering boards 21 and 27mm on
infill beams for AluDEK
> Utmost safety
- Almost entirely toolless installation of the safety components
- Table platforms with integral edge protection can be installed all round, also corner platforms
- Even more safety thanks to gapless edge protection systems
Forming slabs without compromises
DEKplus sets standards in compatibility, efficiency and economy.
Our new DEKplus concreting table is uncompromisingly developed for efficient use on the construction site. Perfectly coordinated accessories and well thought-out safety solutions ensure fast construction progress.
Table elements up to 12.15m² in size and the low construction height of only 12cm guarantee rational working, fast shuttering times and significantly reduced transport costs.

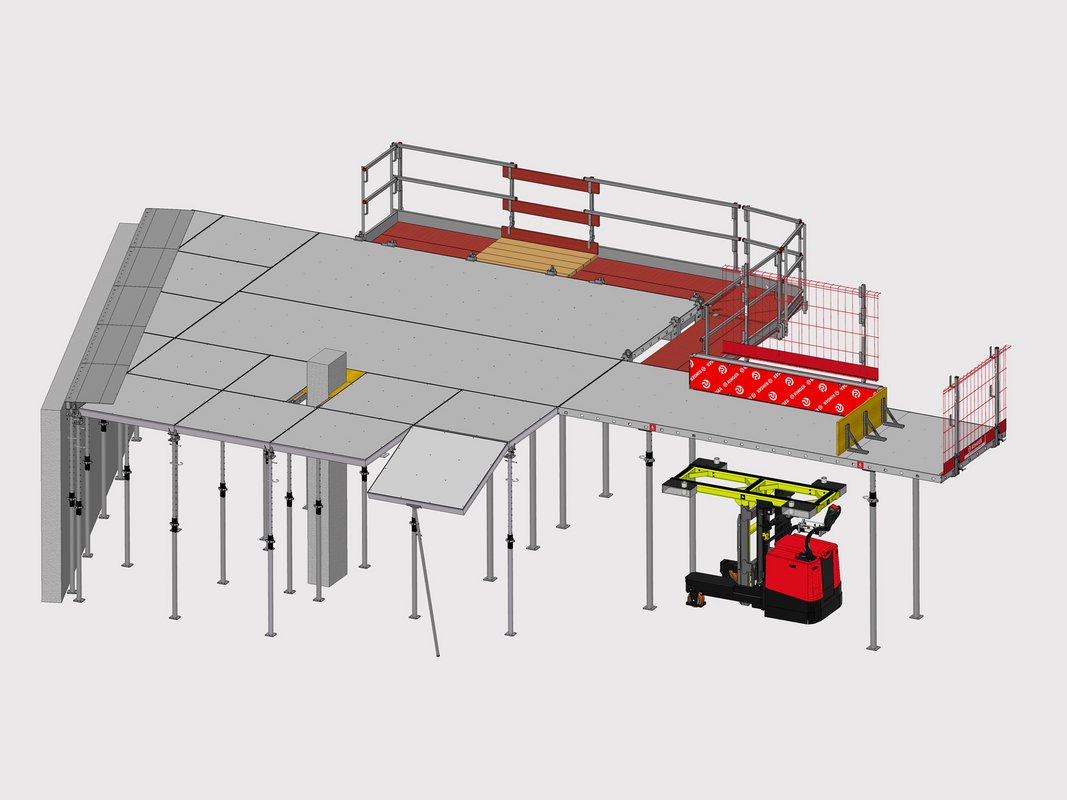

DEKplus - Fast, simple and clean
The overall height and grid dimensions of the table elements are perfectly matched to the modular slab formwork AluDEK.
Remaining areas can be quickly compensated with infill beams and formwork panels.
The optimally coordinated safety accessories such as platforms and side protections ensure the highest level of safety in every construction phase.

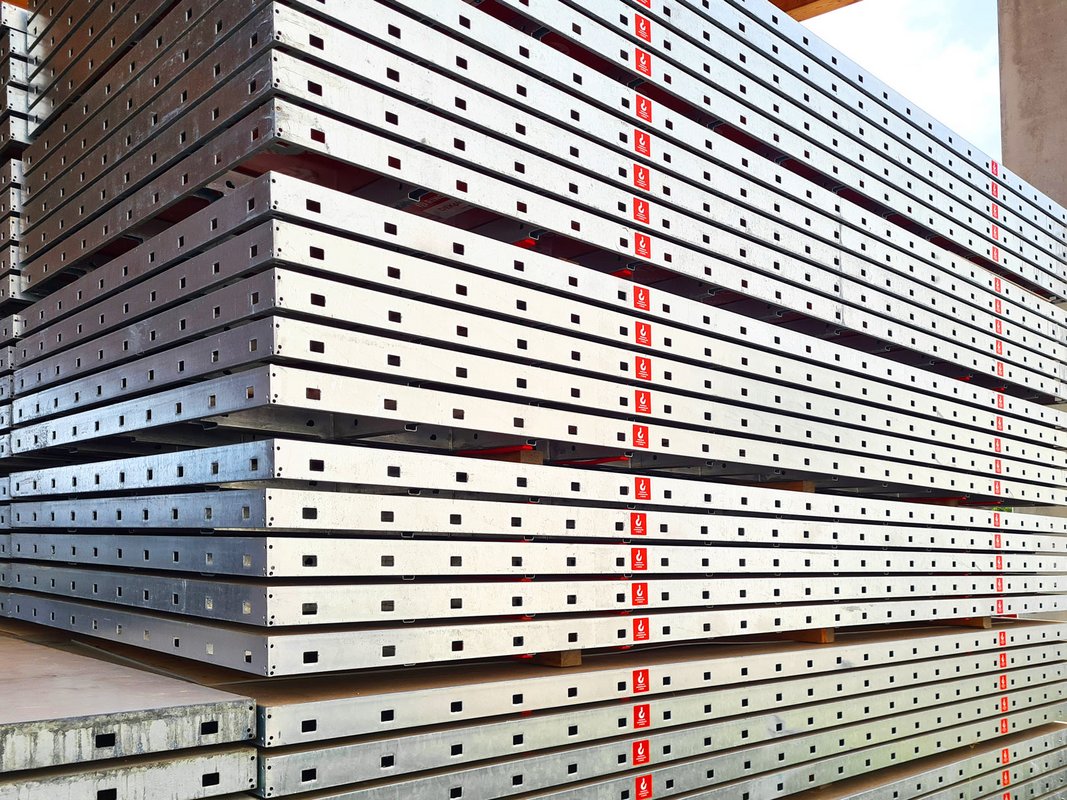

Space-saving thanks to low overall height
The slim overall height of only 12 cm means that a single semi-trailer can transport the tables for 480 m² of concrete floor slab. In the majority of cases this is enough for an entire construction jobsite.
DEKmobil - manoeuvrable high-lift truck
The DEKmobil makes the job of stripping out the tableforms quick and easy. It can move forward/back and sideways. The high-lift truck fits neatly between the rows of floor props and can turn in its own length.
No-tools installation of the safety components
The frame of the DEKplus table is designed so that add-on parts and accessories can be installed without the use of tools. So safety gear, stop-ends and extensions are quickly installed and removed at any time. It adds up to zero-compromises safety and convenience on the job.

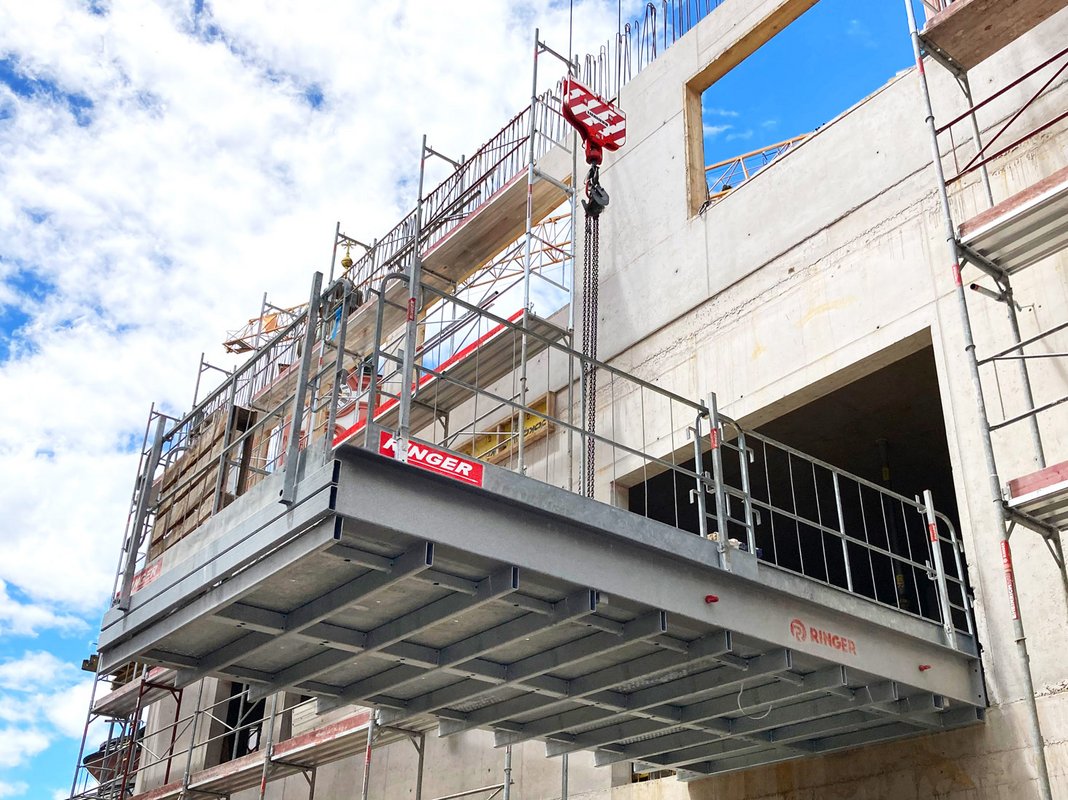

Unloading platform 5000 kg
The RINGER unloading platform 5000 kg is the ideal solution for materials storage and transport on the exterior of the structure. Inside usable width is 2.58 m and usable platform area is 13 m², so this platform offers ample space for shifting DEKplus tables out of the structure.
Perfectly coordinated: AluDEK & DEKplus
A slab formwork system without compromise.
AluDEK and DEKplus complement each other perfectly, the panels are 100% compatible.
All safety components can be fitted and removed without tools. Both the extension and safety components are integrated into the system.
Prop heads swivel to either side
The DEKplus prop head is designed as the safe attachment for floor props with head plates up to 150 x 150 mm. It can be installed anywhere and for maximum working convenience it swivels in both directions, can be operated from floor level and self-latches securely when swivelled back into position.
Straightforward infills
Closures are made with AluDEK infill beams and strips of 21/27 mm shuttering boards. Infill-beam adapters make installing the infill beams a no-tools operation.

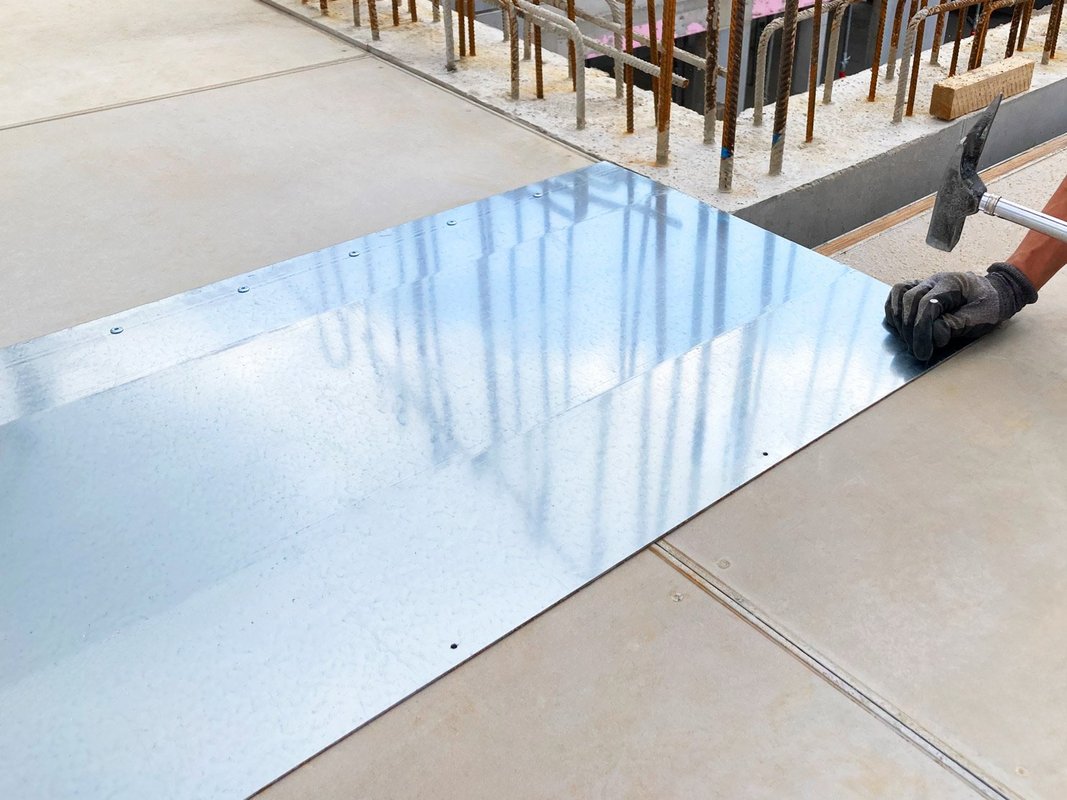

Eazyboard
This innovative system for dealing with closures and infills can be used with all slab formwork systems. Maximum closure width is 45 cm for a slab thickness of 35 cm. Eazyboard can be re-used without restriction and causes no wastage. After being stripped out and cleaned it is immediately ready to be used again.
Closure with suspension bracket H2
The brackets are ideal for all closures at the table edge or slab edge, no extra floor props are needed. The bracket hooks directly into the assembly holes in the DEKplus table. A second H20 beam can carry shuttering boards 21 mm or 27 mm thick laid directly on top.

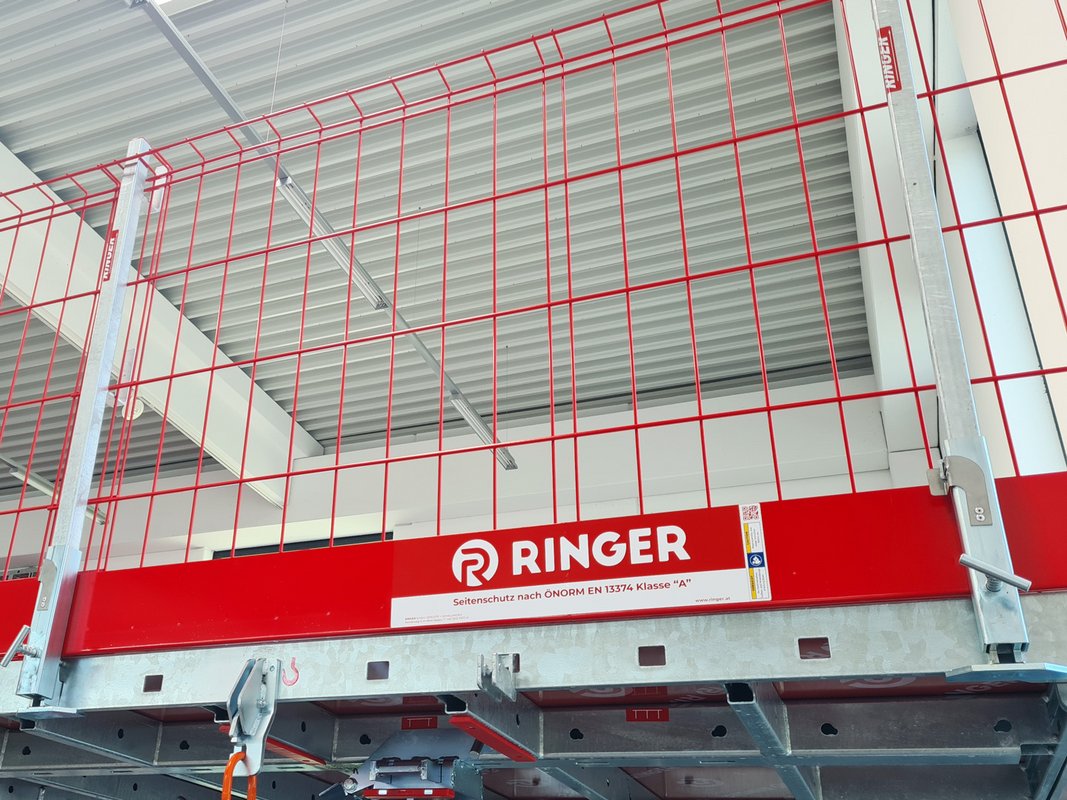

All-round edge protection
Safety at the slab edge with table platforms that can be installed all round and corner platforms with integral edge protection railings. The handrail-post shoe for the side protection grid slots into any of the side holes along the edge profile, no tools required.

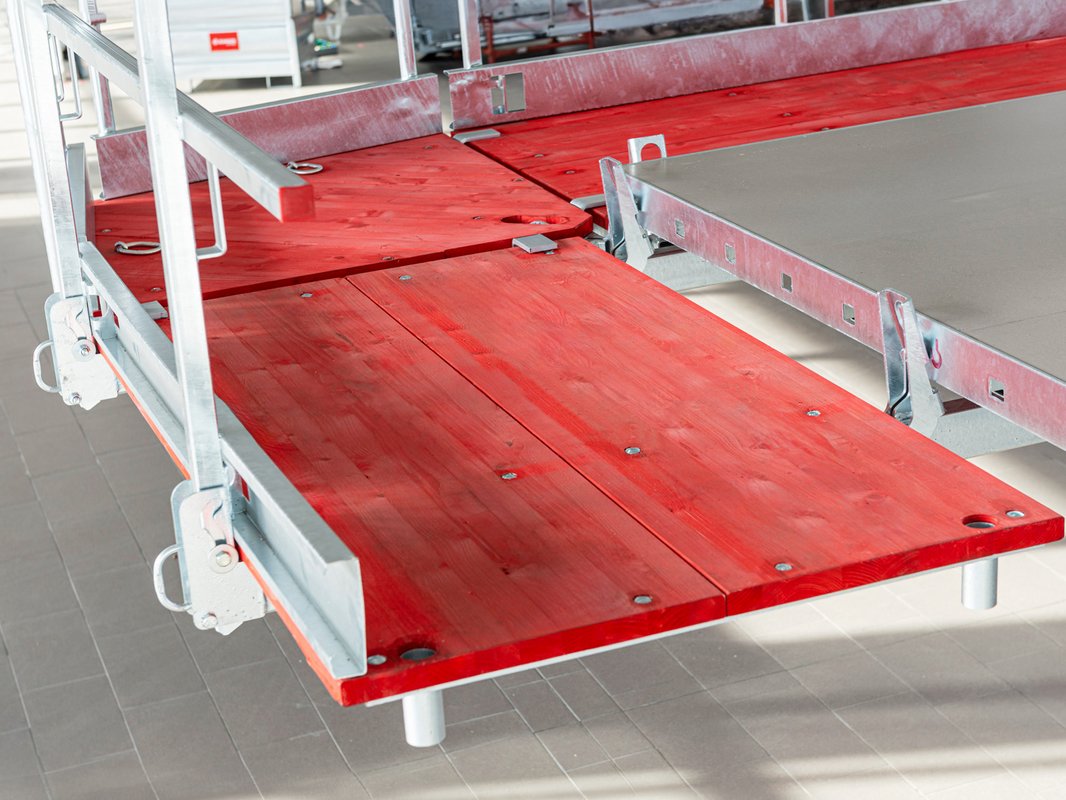

Platforms
The platforms can be hooked in with the railings already upright and lock automatically in place at the edge of the table. The table platforms have integral edge protection railings that only have to be raised to the vertical. No further work from below is required.
Stop-end with integral edge protection
The DEKplus shoe for guardrail with stop ends combines easy stop-end shuttering with maximum safety. The shoe for guardrail can be installed anywhere along the edge profile. The slider for the stop-end can be extended to any position in the range from 1 cm to 37 cm.
Zero-compromises compatibility, ideal with AluDEK
The DEKplus tableform is designed for maximum versatility. Adapters ensure combinability with AluDEK panels.
Videos
Downloads
Testimonials
45,000m² company headquarters for the entire ETZI Group
The new 45,000m² headquarters of the ETZI Group is currently under construction in Ried im Traunkreis, Upper Austria. The latest slab formwork system family from RINGER was used for the slab formwork of the multi-storey company headquarters.
New construction of the Sonnenallee health centre, Aspern
When constructing the slabs of the six-storey new building, the new concreting table DEKplus in combination with the modular slab formwork AluDEK played an essential role.
