> Highly efficient thanks to few individual parts
- Range of floor props and heads
- H20 beams made of solid wood
- RINGER 3S formwork panel
> Maximum flexibility when forming
- Adaptable to any floor plan, any slab size and any slab thickness
> Absolute grid freedom
- Yoke and cross beams can be positioned as required
> Safe assembly & dismantling
- Assembly from the floor
- Lowering head with quick lowering for safe and fast stripping

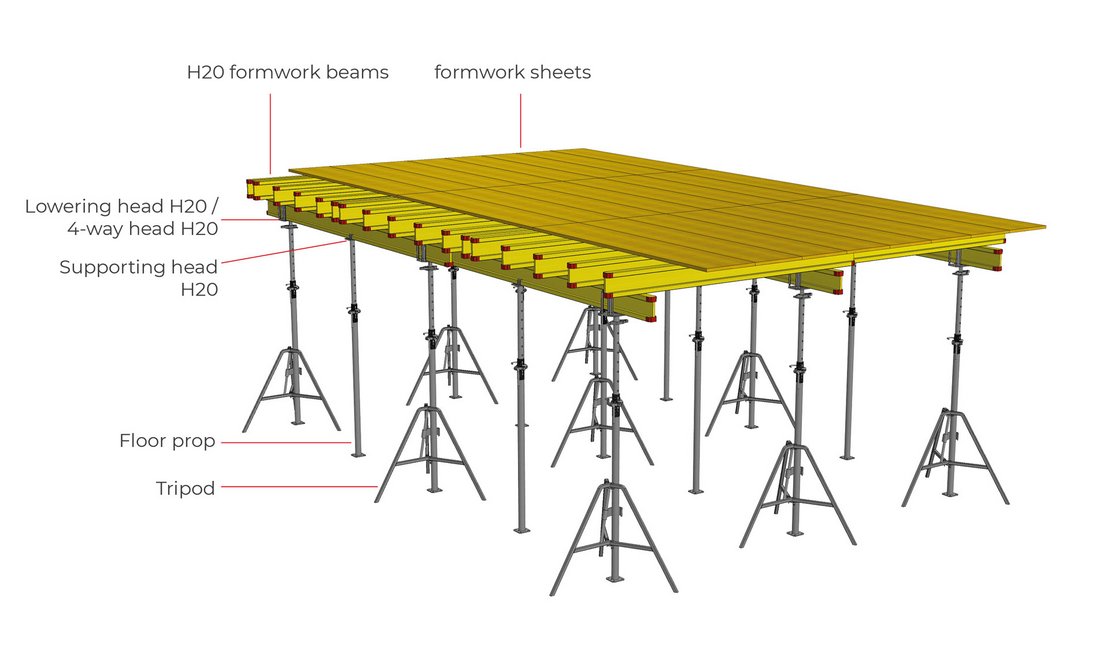

The slab formwork for every floor plan and every slab thickness
RINGER Flex is a highly flexible and cost-efficientformwork system that is characterized by fast and intuitive handling. The enormous adaptability when cutting the formwork panels makes the slab formwork system extremely versatile. The RINGER Flex beam formwork can be used extremely flexibly depending on requirements.
This formwork technology also allows any slab thickness to be formed and adapts to any floor plan and any slab height without the position of the H20 beams and floor props being predetermined.
The ability to place the panels exactly where they are needed also enables the optimum design of exposed concrete surfaces.
RINGER 3S formwork panel
First-class concrete results thanks to outstanding spruce wood quality
Multi-layer structure of the formwork panel for dimensional stability and long service life
High frequency of use thanks to high quality reduces costs
RINGER Nordwald formwork panels are also ideal for forming small foundations and ceilings
Floor props 20kN / 30kN / class B / channel braces
Reliable due to high load capacity and smooth-running external thread
Fixed socket bolt and compatible with all support heads
Long service of the probs life thanks to hot-dip galvanizing and forged threaded nuts
Maximum safety thanks to fail-safe and crush protection
Flex additional components
The wide range of Flex accessories, from floor prop heads to guardrails, makes this slab formwork solution a particularly versatile, efficient and safe formwork system.
The 4 Way Head H20, for supporting and stabilizing the H20 formwork beams, is robust and galvanized for a long service life. A galvanized Lowering Head H20 with integrated rapid lowering system makes it much easier to strip the formwork quickly. The Fork Head H20 is used to secure intermediate props. The RINGER Tripod is designed to be foldable, making it easy to store and transport. The galvanized "adjustable" and "standard" versions of the slab edge clamp each offer holders for a fall protection bracket. The guardrail for scaffolding brackets is also used to quickly secure the slab edge and is compatible with the slab edge clamp.
