Steel Master

Strong, flexible and robust. Our powerful steel framed formwork for heavy duty applications with crane.

Downloads Contact Used Formwork

Product Features

> Performance

80 kN/m² permissable fresh concrete pressure

> Versatile

Panel height: 1,35 m / 2,70 m / 3,30 m
Panel width: 0,25 m / 0,30 m / 0,45 m / 0,50 m / 0,55 m / 0,60 m / 0,90 m / 1,35 m / 2,40 m / 2,70 m

> For crane use

> Compatible with Alu Master

> Stable and ergonomic geometry

Heights up to 3,30 m without extension
High-quality galvanized
Easy cleaning

> Maximum dimensional stability

Fit for toughest use
Increased lifespan

> Excellent concrete finish

Only two ties required up to 3,15 m height
High-quality plywood (phenolic coated, plastic coated and solid plastic (Alkus))

High load capacity combined with easy handling and comprehensive work safety.

With a load capacity of up to 80kN/m², Steel Master formwork is ideal for heavy-duty applications. With Ringer Master you can profit from superlative concrete finish, easy handling and planning as well as comprehensive work safety.

Steel Master is a very versatile system that is equal to very tough challenges.

Frames and forged connection accessories are hot-dip galvanized for a long lifespan.

Steel Master offers great flexibility due to a wide range of panel sizes up to a height of 3.30 m. All panels can be used both horizontally and vertically and for forming single-sided walls.

Steel Master is a cost-efficient solution for your jobsite.

Steel framed formwork crane

Circular formwork

Alu Master and Steel Master panels can be combined in any way. This allows large scale hand-set or crane forming.

Master panels

Steel Master panels are made of high quality and torsion-resistant steel.

This allows extreme load capacity at less weight of the formwork.

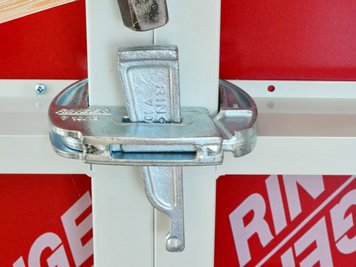

UNI-clamp

RINGER UNI-Clamp allows strong connection and alignment of panels with only one hammer blow.

Stahl Master

We recommend the panels to be equipped with RINGER plastic coated plywood.

The use of RINGER plastic coated plywood triples operating time.

No peeling due to moisture.

Higher statical load capacity, easy to clean, chemically and UV resistant.

Easy recycling.

Master crane hook

Large panels ca be repositioned easily with the master crane-hook. It possessed a load capacity of 1.800 kgs.

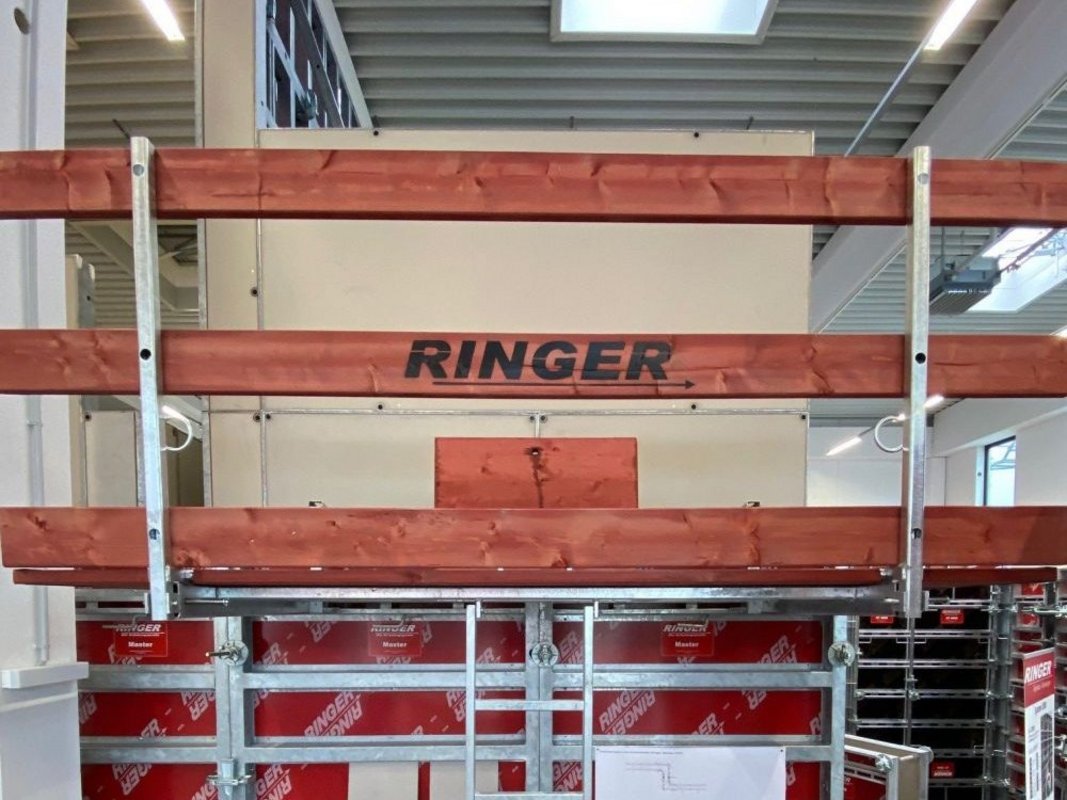

Concreting platform

RINGER working platforms crucially increase operational safety.

Frame formwork

A round affair. A combination of Master standard panels with Master circular forming plate allows the forming of curves.
